Vented Hex Head Screws
Vented Hex Head Screws
The Solution for Trapped Gas | Maximize Vacuum Efficiency | 18-8 Stainless Steel
Product Overview

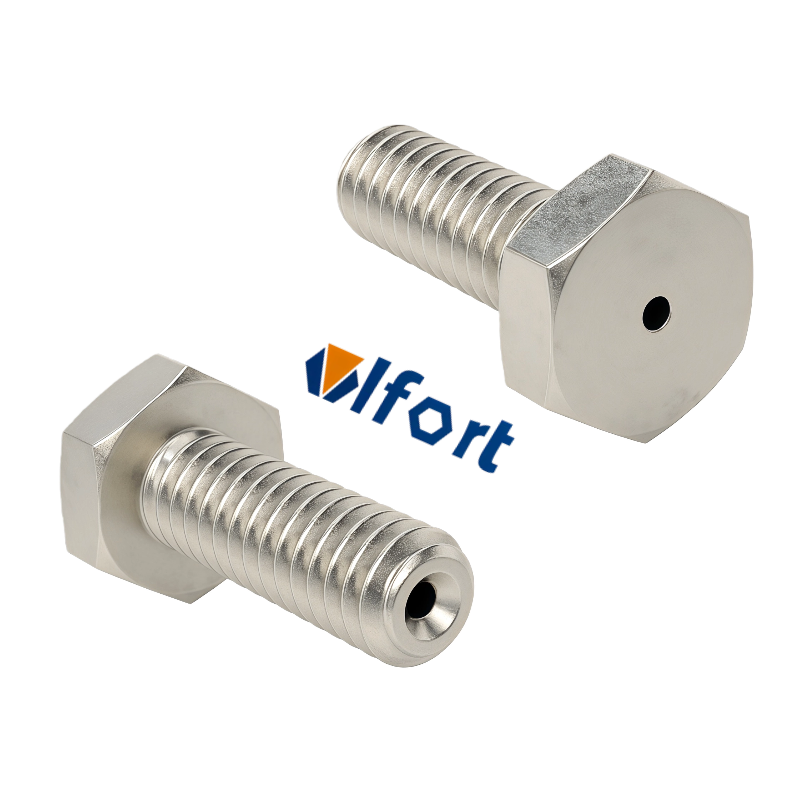

These Vented Hex Head Screws are precision-drilled with a continuous hole running through the head and shank. This engineered feature is essential for high-vacuum systems, pressure vessels, and critical fluid assemblies, as it allows trapped gases and fluids to vent and escape from blind tapped holes.
Fabricated from Corrosion-Resistant 18-8 Stainless Steel, these fasteners guarantee long-term reliability and performance in demanding industrial and laboratory environments.
Core Features & Benefits
| Feature | Benefit (Why it Matters) |
| Through-Hole Venting | Drastically reduces vacuum pump-down time by eliminating trapped air pockets. Essential for pressure equalization and fluid drainage. |
| 18-8 Stainless Steel | Exceptional corrosion and rust resistance, ideal for sanitary, washdown, and harsh environments. |
| Standard Hex Head | High-torque installation and easy removal using common tools, simplifying maintenance. |
| Thread Options | Choose Fully Threaded for maximum clamping force or Partially Threaded for greater shear strength and precise component alignment. |
Critical Applications
Vacuum Chambers: Ensures rapid system evacuation.
Fluid Power Systems: Used in hydraulic and pneumatic manifolds to bleed air and ensure smooth operation.
Scientific & Laboratory: Essential for high-spec equipment like mass spectrometers and vacuum ovens.
Sanitary Environments: Provides complete drainability in Food, Beverage, and Pharmaceutical processing.
Technical Specifications Summary
| Thread Size (UNC) | Length Range | Threading | Wrench Width | Vent Diameter | Material | Tensile Strength |
| 1/4"-20 | 1/2" - 1" | Full/Partial | 7/16" | 0.062" | 18-8 SS | 70,000 psi |
| 5/16"-18 | 3/4" - 1 1/2" | Full/Partial | 1/2" | 0.078" | 18-8 SS | 70,000 psi |
| 3/8"-16 | 3/4" - 1 1/2" | Full/Partial | 9/16" | 0.093" | 18-8 SS | 70,000 psi |
| 1/2"-13 | 1" - 2" | Full/Partial | 3/4" | 1/8" | 18-8 SS | 70,000 psi |
Drive Type: Hex Head | Material: 18-8 Stainless Steel
FAQs
Q: How fast will this reduce my pump-down time?
A: By providing a direct escape route for air trapped beneath a standard screw, a vented screw can significantly and measurably reduce the time required to achieve ultimate vacuum levels.
Q: Are these suitable for high-pressure systems?
A: They are effective for equalizing trapped pressure volumes during system startup. They are not certified or rated as pressure relief valves. Always consult an engineer for critical pressure system design.
Ready to enhance your system efficiency? Shop our selection of Vented Hex Head Screws now.
