Molded-In Threaded Inserts
Molded-In Threaded Inserts
Compatible Engineering TYPE Codes: IBA, IBB, IBC, IBLC, ITA, ITB, ITC, STKA, STKB, STKC
Molded-in threaded inserts are installed during the injection-molding process. The insert is held in place by a core pin inside the mold cavity; once the mold closes and the material flows around it, the insert becomes permanently encapsulated within the plastic.
This method provides the highest pull-out strength and eliminates the need for secondary installation equipment.
Molded-In Installation Process
The insert is positioned in the mold cavity using core pins.
When plastic is injected, it completely fills around the insert body.
When the mold opens, the core pins retract, leaving the insert fully embedded with only the internal thread exposed.
Advantages
No ultrasonic equipment required
No heat-staking tools required
Zero secondary operations
Maximum strength retention
Excellent thread cleanliness
Ideal for high-volume production
Compatible TYPE Categories (Engineering Cross-Reference)
The following TYPE classifications are common on molded-in drawing requirements:

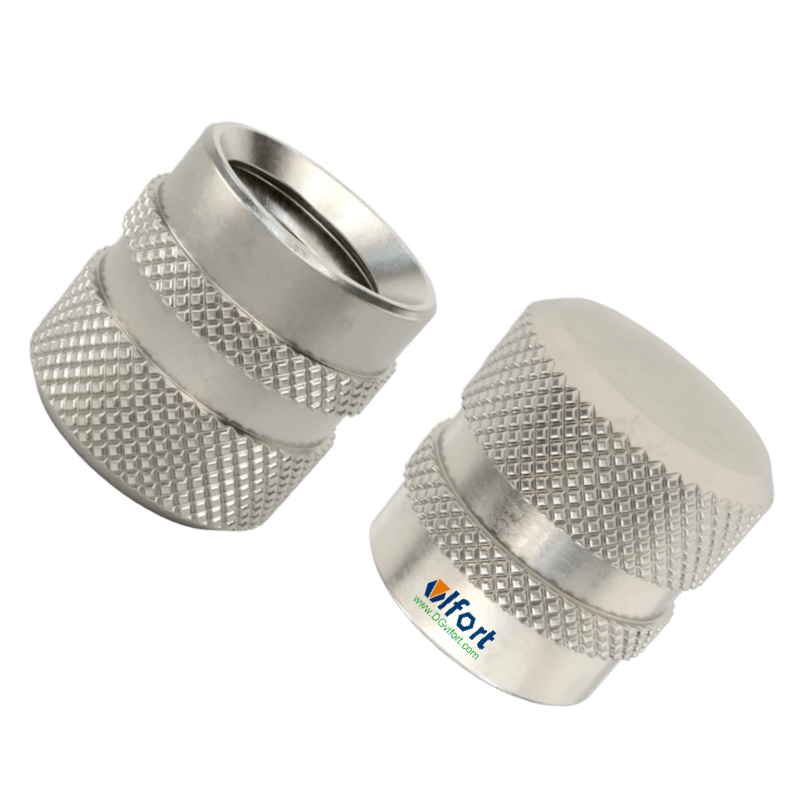

Blind Threaded Molded-In Inserts
IBA, IBB, IBC
Blind-end structure prevents material intrusion.
Self-Locking Blind Inserts
IBLC
Adds internal locking feature for vibration resistance.
Through-Threaded Molded-In Inserts
ITA, ITB, ITC
Straight through-thread design, high structural stability.

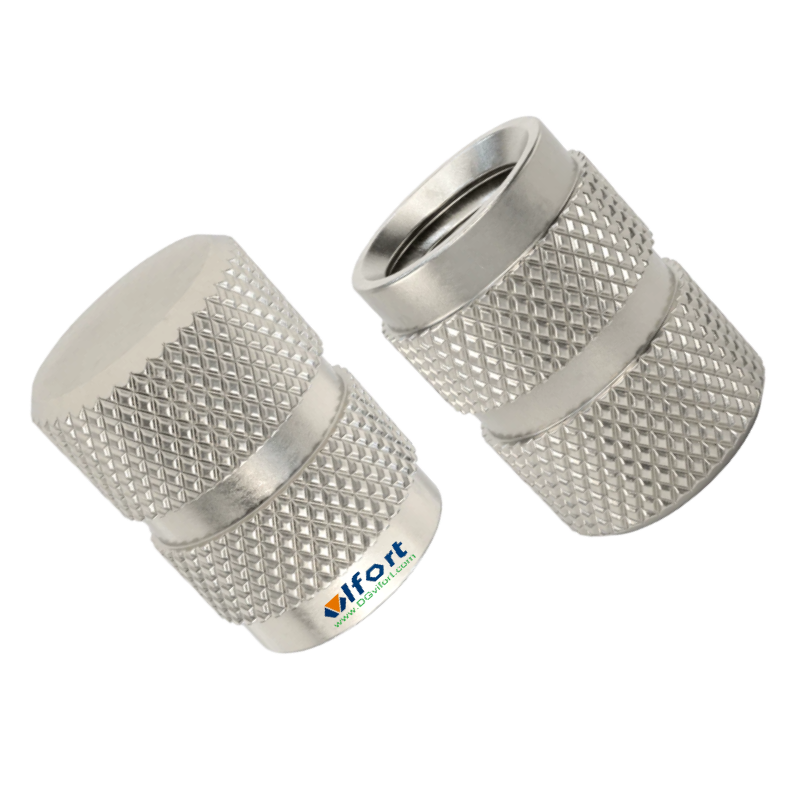

Knurled Molded-In Inserts
STKA, STKB, STKC
Aggressive knurl patterns for maximum pull-out performance.
Our Product Series Mapping
| Our Series | Compatible TYPE | Installation Style |
|---|---|---|
| BI-Series | IBA, IBB, IBC, IBLC | Molded-in blind inserts |
| HK-Series | STKA, STKB, STKC | High-retention molded-in knurled inserts |
Representative Part Numbers (Examples)
BI-C-256-1
BI-C-440-2
BI-C-632-2
HK-B-832-3
HK-B-40-2
Full molded-in dimensional lists available upon request.
Applications
Automotive plastic components
Medical devices
Mechanical enclosures
High-load structures
Industrial equipment
Consumer electronics
OEM Customization
Custom blind depth
Thread options
Special knurl geometry
Mold-flow and boss optimization support
Engineering verification testing
