Ultrasonic & Heat-Staking Threaded Inserts
Ultrasonic & Heat-Staking Threaded Inserts

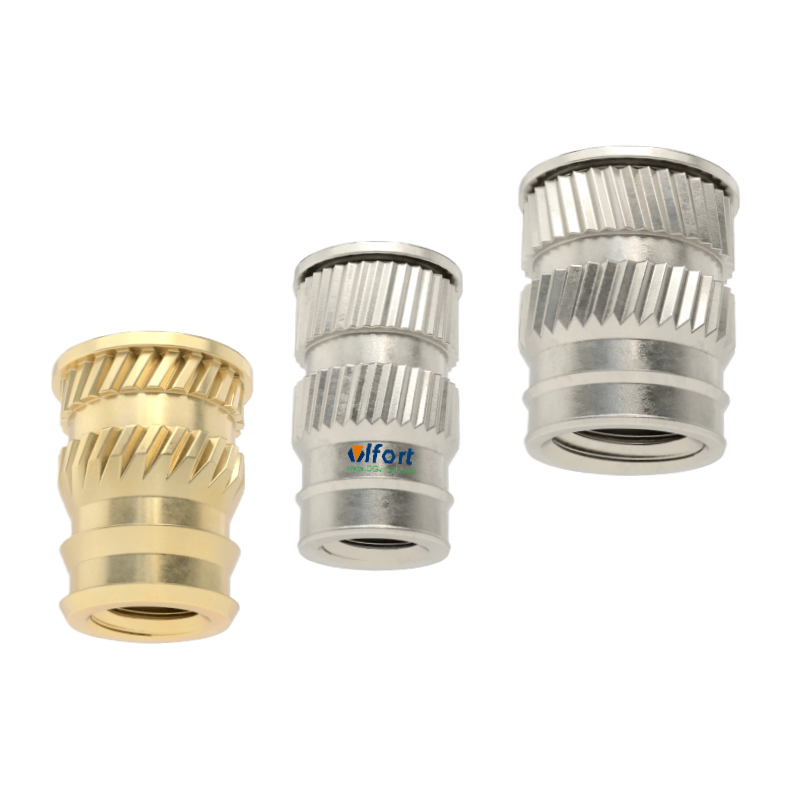

Compatible Engineering TYPE Codes: IUA, IUB, IUC, IUTA, IUTB, IUTC, IUTFA, IUTFB, IUTFC, ISA, ISB, ISC, MSIA, MSIB
Our ultrasonic and heat-staking inserts are designed for installation into thermoplastic materials using either ultrasonic vibration or thermal staking. These processes melt the plastic around the insert, forming a permanent mechanical bond with excellent pull-out and torque performance.
Installation Methods
Ultrasonic Installation
The insert is pressed into the plastic boss while high-frequency vibration is applied.
Frictional heat melts the surrounding plastic, allowing the insert to sink into position.
When vibration stops, the plastic solidifies around the knurls, locking the insert permanently.
Heat-Staking Installation
A heated thermal press softens the plastic boss.
The insert is applied with controlled pressure until seated.
After cooling, the plastic forms a secure mechanical interlock.
Compatible TYPE Categories (Engineering Cross-Reference)
The following TYPE designations are commonly used in engineering drawings worldwide.
Our inserts fully support these dimensional and functional categories.
Tapered Through-Threaded Inserts
IUA, IUB, IUC
Tapered lead-in for smooth installation and strong retention.
Straight-Wall Through-Threaded Inserts
IUTA, IUTB, IUTC
Cylindrical body for controlled installation and high consistency.
Flanged Straight-Wall Inserts
IUTFA, IUTFB, IUTFC
Integrated flange increases pull-through resistance.

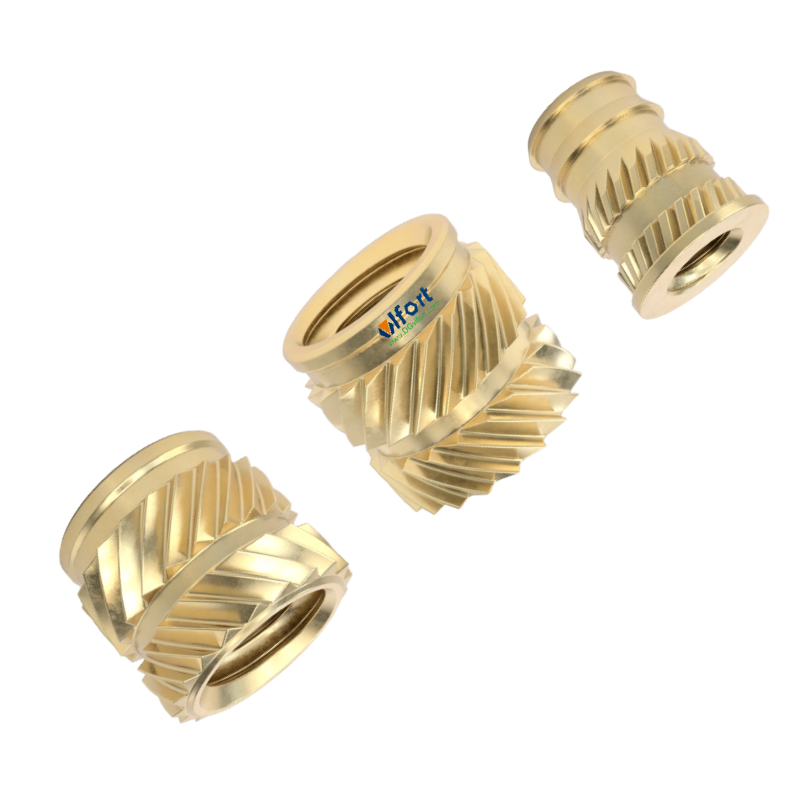

Symmetrical Through-Threaded Inserts
ISA, ISB, ISC
Bidirectional design eliminates orientation errors.
Micro Symmetrical Inserts
MSIA, MSIB
Miniature symmetrical inserts for compact electronic devices.
Our Product Series Mapping
| Our Series | Compatible TYPE | Installation Style |
|---|---|---|
| HT-Series | IUA, IUB, IUC, IUTA, IUTB, IUTC, IUTFA, IUTFB, IUTFC | Ultrasonic / Heat-staking |
| SY-Series | ISA, ISB, ISC, MSIA, MSIB | Symmetrical ultrasonic / heat-staking |
| HK-Series | Selected straight-wall and high-retention equivalents | High-strength ultrasonic |
Representative Part Numbers (Examples)
HT-B-256-1
HT-B-440-1
HT-B-632-2
SY-B-30-2
SY-B-50-3
Full dimensional charts available by request.
Applications
Injection-molded housings
Consumer electronics
Wearable devices
Smart equipment
Automotive interior components
Small appliances
OEM Customization
Special lengths
Special knurl geometries
Custom tolerances
Material selection (brass, stainless, aluminum)
Boss-design engineering support
Tape-and-reel packaging
