Precision CNC Machined Push Rod (P/N 61-1306)
Precision CNC Machined Push Rod (P/N 61-1306)

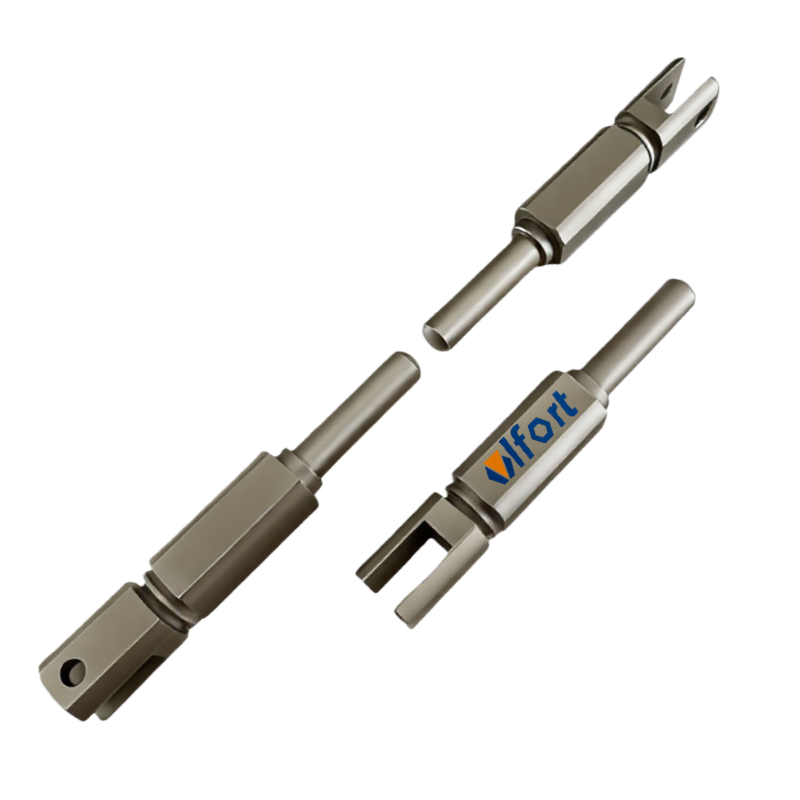

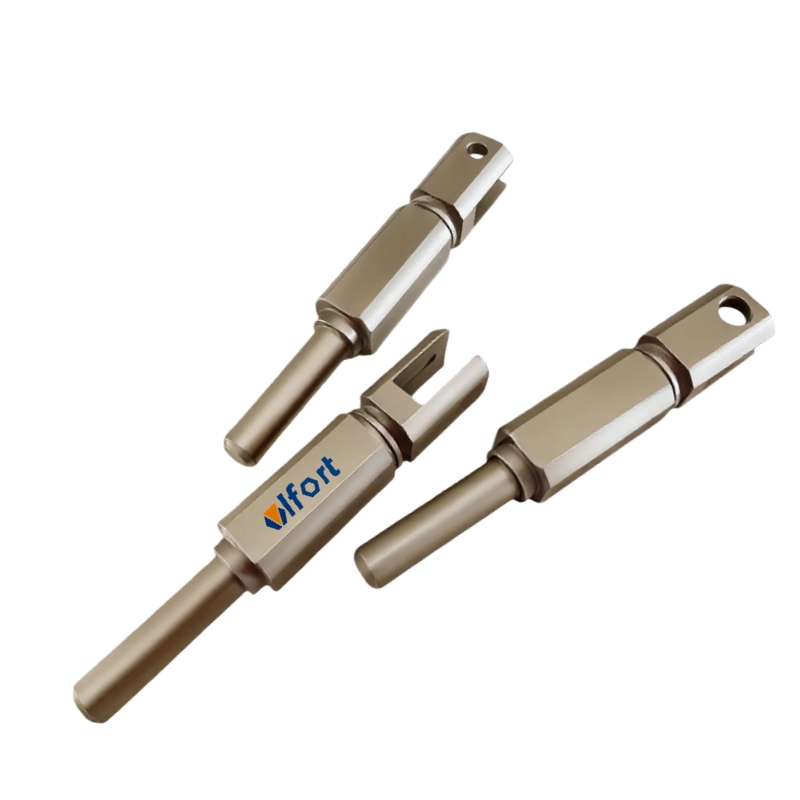

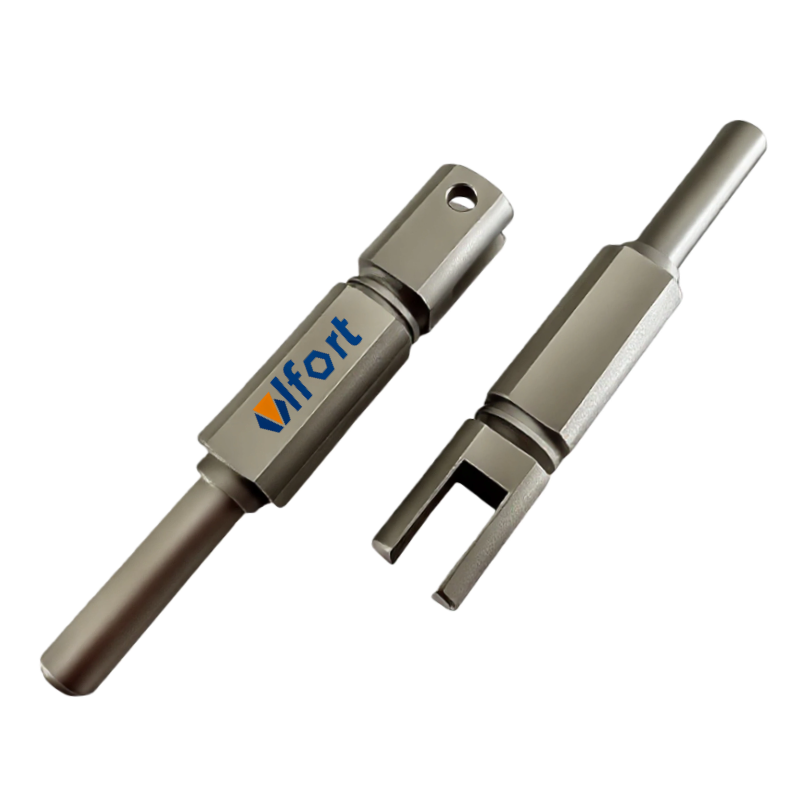

The Precision CNC Machined Push Rod (Part No. 61-1306) is a critical CNC turned actuator component used in industrial control systems. Manufactured through advanced CNC precision machining, it ensures consistent performance, exceptional dimensional accuracy, and surface integrity that meets or exceeds original engineering standards.
I. Core Specifications & Engineering Highlights
| Specification | Detail | Technical Challenge | Key SEO Keywords |
|---|---|---|---|
| Component Type | Push Rod / Actuator Shaft | Maintaining concentricity and linear accuracy | CNC Turning Parts, Precision Machined Components |
| Material | ASTM 12L14 Free-Cutting Steel | Chip control and thermal distortion management | 12L14 Steel Machining, Carbon Steel Turning |
| Surface Finish | Matte Gray Nickel Plating | Achieving pattern-free surface | Nickel Plating, Surface Finish Ra, Metal Machining |
| Plating Thickness | 0.00025–0.0003 in | Precise plating offset control | Post-Plate Dimensioning, Micro-Tolerance Machining |
| Tolerances | ±0.01 in | Multi-diameter alignment and GD&T accuracy | Tight Tolerance Machining, Precision Parts Supplier |
II. CNC Turning Process Excellence
1. Pattern-Free Surface Finish
To achieve a pattern-free, low Ra surface finish suitable for matte nickel plating, our process employs ultra-fine CNC Swiss turning cycles, optimized tool geometry, and vibration-dampened machines. This ensures a smooth, flawless base without tool marks.
2. Dimensional Accuracy & Concentricity
All primary features—including stepped diameters and through holes—are completed in a single CNC setup to maintain high concentricity and minimize cumulative error. Real-time temperature control and tool wear monitoring guarantee micron-level precision.
3. Plating Offset and Final Inspection
Dimensional offsets are pre-calculated to compensate for plating thickness. Final QC uses calibrated gauges and CMM measurement to verify GD&T compliance, ensuring each batch matches design intent and functional requirements.
III. Why Choose Us
We specialize in precision CNC turning, milling, and high-volume custom machining of complex metal components.
Our commitment: flawless surface finish, stable tolerance control, and full traceability for every part.
Keywords: CNC Turning Services, Precision Machining Parts, Custom Metal Components, Tight Tolerance CNC, High Volume Machining, Metal Machining Supplier.
